Northrop YF-23

Talk0
943pages on
this wiki
Northtrop YF-23 Black Widow II
Northrop - McDonnell Douglas YF-23
Description
Role Stealth Air superiority fighter
Crew
Passengers
First flight 1991
Entered service Technology Demonstrator
Manufacturer
Produced
Dimensions
Length 20.26 m
Wingspan 13.21 m
Height 4.20 m
Wing area 87.80 m²
Weights
Empty 13,100 kg
Loaded 23,327 kg
Maximum takeoff 29,000 kg
Powerplant
Engine
Power (each)
Performance
Maximum speed 2655 km/h ( 2,240 km/h published) 1650 mph
Cruising speed Mach 1.6 1706 km/h
Range 4500 km
Ceiling
Rate of climb

The YF-23 was the competitor of Lockheed's YF-22 in the Advanced Tactical Fighter Project, which was won by it and which was developed into the F-22, the new air-superiority fighter of the US Air Force.



Was the YF-23 the better plane ?Edit

Both ATF competitors were excellent aircraft but the decision of the Air Force to chose the YF-22, instead of the YF-23 was right. Of course it´s true that the YF-23 was a stealthier and probably faster design, but the YF-22 was much more manoeuvrable, mainly because of the vectoring nozzles, which cannot be added on the YF-23. It seems that the USAF preffered manoeuvrability over stealth. The reason for that is that an highly manoeuvrable aircraft is more survivable, while the YF-22 could outmanoeuvre enemies with ease, the Black Widow would´ve struggled with doing that (this goes only if the enemy has TVC, like Su-35, PAK-FA etc. but conventional aircraft would be outmanoeuvred by the YF-23) and it was also able to dodge missiles much easier than the less manoeuvrable Black Widow would have done it. But high manoeuvrabilty wasn´t the only single advantage of the YF-22, it also had much more advanced cockpit technology and electronics, while the Black Widow had the same cockpit as the F-15 Eagle, being another disadvantage. And concerning the weapons bays, the volume of the YF-22´s was larger than the YF-23´s, so that more missiles could be fitted, but it is true that the YF-23´s bay was deeper, allowing it to carry its weapons one over another, but this is too risky because if one missile is jammed the other one behind it is automatically jammed as well. The next disadvantage of the YF-23 was that it was actually only a technology demonstrator and Northrop focused it´s work on the unbuilt EMD F-23, a big mistake because Lockheed´s design was very close to production, only a few changes had to be made and it could enter service, but however Lockheed completely redesigned their design to make it more aerodynamical, stealthier and manoeuvrable.

In fact Northrop´s design is more tailored to an Interceptor, to intercept Russian bomber fleets during the Cold War, while Lockheed´s design is more tailored to an Air-superiority fighter and this is the next problem of the YF-23, the Cold War has ended, so there´s no need for a very fast interceptor aircraft, making Lockheed´s design a better choice.

Yf-23-c

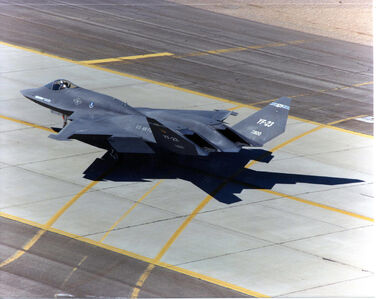

YF-23












Gallery 87-0800 ( Black Widow II )Edit

Gallery 87-0801 ( Gray Ghost )Edit
