Boeing 247
Boeing 247D

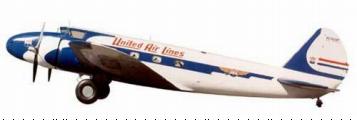

A Boeing 247D

Description
Role Passenger & military transport/trainer
Crew 3
Passengers 10
First flight February 8, 1933
Entered service
Manufacturer Boeing
Produced 75
Dimensions
Length 51 ft 7 in
Wingspan 74 ft 0 in
Height
Wing area
Weights
Empty
Loaded
Maximum takeoff
Powerplant
Engine 2 × P&W Wasp
Power (each) 500 hp
Performance
Maximum speed 200 mph
Cruising speed 189 mph
Range 745 miles
Ceiling 25,400 ft
Rate of climb

The Boeing 247 was a 1930s commercial transport. It is considered among the first "modern" aircraft. It was also known in military service as the C-73. This plane carried the Stars and Stripes across the finish line in the world's greatest air race: The MacRobertson Air Race. It flew to 3rd place.

HistoryEdit

The Boeing 247 was a revolutionary aircraf, first flying on February 8, 1933, and is considered the first modern passenger airliner. It combined in one aircraft a number of important features, such as a gyro panel for instrument flying, an autopilot, pneumatically operated de-icing equipment, a variable-pitch propeller, retractable landing gear, and an all-metal monocoque fuselage.

The higher speed of the Boeing 247 meant that it could make a trip across seven and a half hours shorter than any previous airliner, making for a total flight of twenty hours. 60 of these aircraft were flown by Boeing Air Transport, with 10 more going to United Aircraft, and the remaining to Lufthansa. They remained in civilian use until World War II, when they pressed into military service as trainers and transports under the designation C-73. Some of these aircraft were still flying into the 1960s.

In civilian use, the Boeing 247 was replaced by the Douglas DC-2.

Notable EventsEdit

On October 10, 1933, a Boeing 247 was the victim of the first confirmed case of sabotage of a commercial airliner. A United Airlines aircraft flying from Cleveland to Chicago was destroyed by a nitroglycerin-based explosive device over Chesterton, Indiana.

5052 1

Existing aircraftEdit

Some existing 247s at museums:

Serial c/n Info
CF-JRQ 1699 National Museum of Science and Technology, Rockcliffe, Canada. Donated to the Museum in 1967 by California Standard Oil of Calgary, Alberta
N18E 1722 Science Museum store, Wroughton, UK
N13347 1729 Museum of Flight, Paine Field, Washington, USA. Airworthy
NC13369 1953 National Air and Space Museum, Washington DC, USA. (Marked as NR257Y)


TriviaEdit

  • In 1933, after 247's first flight, a Boeing engineer said that there would never be any airplane bigger than this. Obviously he was wrong.
